Postion: Home > Products > WB3100 WB3100
Portable Interactive Whiteboard WB3100-- Portable System
WB3100 is a positioning system based on the optical technology which adopts the latest patent technology to develop. You can more easily and more convenient operate projectors and computer systems, and obtain better effects of speech and presentation. Turning the curtain to high-precision touch screen. Speakers can operate directly on the computer screen, which is more direct viewing and quick than any mouse. Whether you write and mark in the curtain or need to preserve and playback, speakers can easily realize using by using oway boards, It has more powerful function and more cost-effective than using any other existing whiteboard.
WB3100 is designed to deliver superb agility and reliability in interactive writing on all types of projection screen. The supplied SmartPointer software records every pen stroke you make on your board, so you don’t lose any of your important ideas. Easily and securely broadcast your whiteboard notes over the Internet in realtime to anyone.

Specifications:


        Working Principle:Optical- electrical positioning recognition technology

        Active Area: Max 150 inch

        View Angle: 40 Degree

        Transmission Interface: USB line

        Applied To: Any material including soft screen and white wall

        Aspect Ratio: 4:3,16:9

        Communication Distance: 10m USB standard line (Supporting 40m)

        Power Consumption:≦ 1w

        Response Time: ≦ 25ms(it depends on computer)

        Resolution: 6400*4800

        E-pen Light Emitted: Infrared

        Battery Required: AAA battery x2

        Ability to resist the drop of pen: 2 metres

        OS Required: Windows XP/2003/Vista/Win7

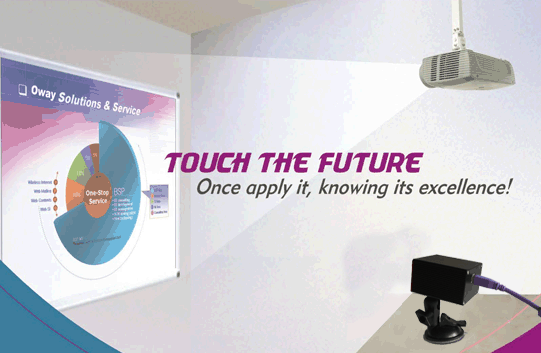

Working Sketch Map

                 Maths interacitve Whiteboard with WB3100
